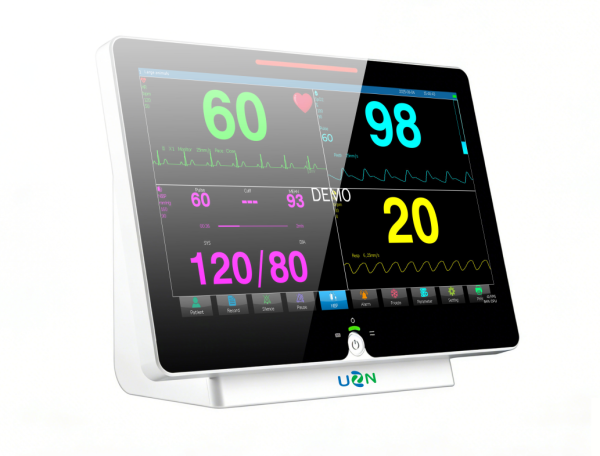

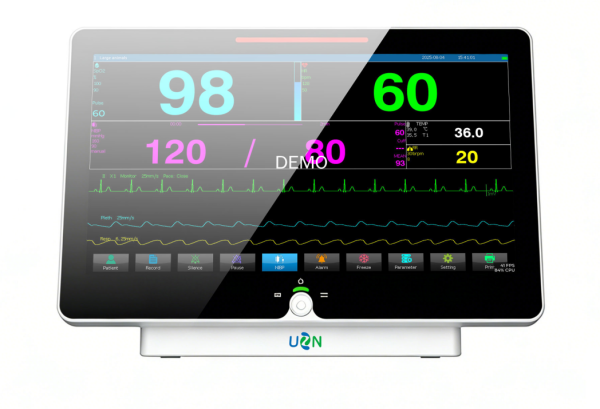

RNpet S15 Veterinary Monitor is a professional multi-parameter patient monitoring system specifically developed for small animal practice. It is designed for use in anesthesia, surgery, dental procedures, and intensive care environments, offering stable performance, clear waveform display, and flexible configuration to support different veterinary clinical workflows.

Key Clinical Features

• Veterinary-specific algorithms and accessories for accurate monitoring in dogs, cats, and other small animals

• Integrated monitoring of ECG, SpO₂, NIBP, respiration, heart rate, and temperature

• 15-inch capacitive color touchscreen with user-centric interface for intuitive operation

• Comprehensive alarm system with audible and visual alerts and adjustable alarm limits

• Lightweight and compact design (approximately 4.0 kg) with integrated carrying handle

• AC/DC dual power supply with built-in rechargeable lithium battery for uninterrupted monitoring

Standard Monitoring Configuration

The standard configuration of RNpet S15 includes:

• ECG

• SpO₂

• Heart Rate

• Respiration

• Temperature

• Non-invasive blood pressure (NIBP)

• Full touchscreen operation with multiple display modes

Optional Expansion Modules(Configurable)

To meet different clinical and budget requirements, RNpet S15 supports optional modules, including:

• EtCO₂ monitoring (mainstream or sidestream)

• Invasive blood pressure (IBP)

• Anesthetic gas monitoring (AG)

• Central monitoring system (CMS) connectivity

• Wireless printer

Display & User Interface

• 15-inch color LCD touchscreen

• Resolution: 1366 × 768 pixels

• Multiple display modes including standard view, large font, waveform review, trend tables, and bedside comparison

Power Supply & Battery

• DC input: DC 18V / 2A

• Built-in rechargeable lithium battery: 2200 mAh / 14.8 V

• Typical operating time: approximately 4 hours

• Charging time: less than 6 hours

Connectivity & Interfaces

• Ethernet network interface (RJ45)

• USB ports

• Wi-Fi connectivity

Physical Specifications

• Dimensions: 41 cm × 20 cm × 36.5 cm

• Weight: approximately 4.0 kg

Parameter Specifications

ECG

• Lead modes: 3/5 leads (I, II, III, aVR, aVL, aVF, V)

• Bandwidth:

  • Diagnostic: 0.05 – 100 Hz

  • Monitor: 0.5 – 40 Hz

  • Surgery: 1 – 20 Hz

Heart Rate

• Measurement range:

  • Large animals: 15 – 300 bpm

  • Small animals: 15 – 350 bpm

• Accuracy: ±1% or ±1 bpm (whichever is greater)

• Resolution: 1 bpm

SpO₂

• Measurement range: 0 – 100%

• Resolution: 1%

• Accuracy (70–100%): ±2%

Pulse Rate

• Measurement range: 25 – 250 bpm

• Accuracy: ±3 bpm

• Resolution: 1 bpm

NIBP (Oscillometric)

• Measurement modes: Manual, Auto, Continuous

• STAT mode cycle time: 5 minutes

• Large animals:

  • SYS: 30 – 280 mmHg

  • DIA: 10 – 220 mmHg

  • MEAN: 20 – 240 mmHg

• Small animals:

  • SYS: 30 – 220 mmHg

  • DIA: 10 – 160 mmHg

  • MEAN: 20 – 170 mmHg

Temperature

• Thermistor probe (2.25K / 10K)

• Measurement range: 0 – 50 °C

• Units: °C / °F

• Resolution: 0.1 °C / 1 °F

• Accuracy: ±0.1 °C (excluding probe)

EtCO₂ (Optional)

• Measurement method: NDIR

• Range: 0 – 19.7% (0 – 150 mmHg)

• Suitable for mainstream or sidestream configurations

IBP (Optional)

• Supports common invasive pressure measurements including ART, PA, CVP, ICP and related channels

Typical Applications

RNpet S15 is suitable for:

• Small animal anesthesia monitoring

• Surgical and dental procedure monitoring

• ICU and ward patient monitoring

• Veterinary clinics and hospitals requiring reliable, flexible, and cost-effective monitoring solutions
