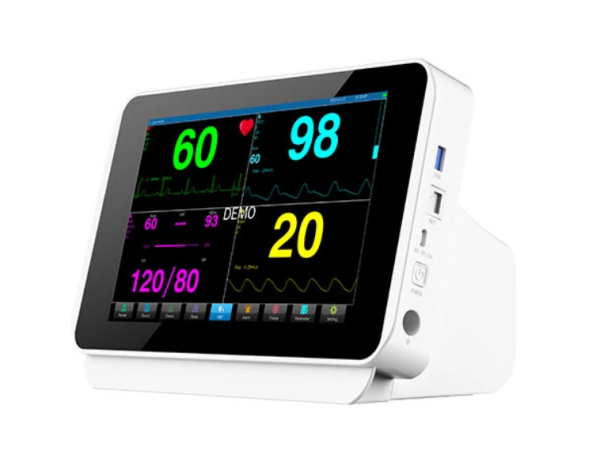

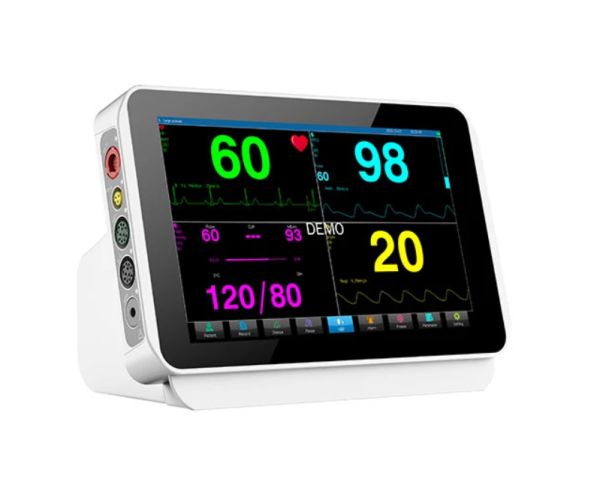

RNpet 10S Compact Veterinary Patient Monitor

Professional Veterinary Monitoring Solution for Clinical Use

RN PET 10S is a compact veterinary patient monitor designed for continuous clinical monitoring in small animal and large animal practice. It is suitable for anesthesia, surgery, ICU observation, post-operative recovery, and emergency care, providing essential physiological parameters in a portable and space-saving design.

This device is intended for professional veterinary use only and is not designed for consumer or home applications.

---

Key Highlights

• Compact veterinary patient monitor with 10.1-inch color touchscreen

• Lightweight design, approximately 1.5 kg, ideal for portable clinical use

• Supports multi-parameter monitoring: ECG, NIBP, SpO₂, RESP, PR, TEMP

• Optional EtCO₂ monitoring for anesthesia and respiratory management

• Veterinary-dedicated accessories and signal processing for improved stability

• Multiple display modes for surgery, ICU, and recovery workflows

• Built-in Wi-Fi supporting CMS / APP data management

• Internal rechargeable lithium battery for bedside and mobile monitoring

• Factory-direct supply with OEM / ODM support

---

Clinical Monitoring Capabilities

RN PET 10S provides continuous monitoring of essential physiological parameters required in veterinary clinical environments:

• Electrocardiography (ECG)

• Non-invasive Blood Pressure (NIBP)

• Blood Oxygen Saturation (SpO₂)

• Respiration (RESP)

• Pulse Rate (PR)

• Temperature (TEMP)

• End-tidal CO₂ (EtCO₂, optional)

The system applies veterinary-specific accessories and measurement logic to support monitoring across different animal sizes and clinical conditions.

---

User Interface and Display

• 10.1-inch color touchscreen for clear visualization of waveforms and numeric values

• Multiple display modes including:

  • Standard monitoring view

  • Large numeric display

  • Trend and NIBP trend review

  • ECG full-lead display

  • OxyCRG view

The interface is designed for efficient operation during procedures and post-operative observation.

---

Connectivity and Data Management

• Built-in Wi-Fi for data transmission and review

• Supports CMS / APP systems for monitoring data management

• Enables data review and export according to clinical workflow requirements

---

Power Supply and Portability

• Built-in rechargeable lithium battery (5000 mAh, 3.7V)

• Supports portable operation and short-distance transport

• External DC 5V / 2A power supply supported

• Full charge supports more than 300 minutes of operation

• Maximum charging time: 2 hours

---

Typical Veterinary Applications

• Veterinary anesthesia monitoring

• Surgical procedures

• ICU and post-operative recovery

• Emergency and rescue situations

• Daily clinical monitoring in veterinary hospitals and clinics

---

Technical Specifications

Physical Characteristics

• Model: RN PET 10S

• Display: 10.1-inch color touchscreen

• Dimensions: 27 × 21 × 14 cm

• Weight: 1.5 kg

---

ECG

• Lead modes: I, II, III, aVR, aVL, aVF, V

• Gain: ×0.25 (2.5 mm/mV), ×0.5 (5 mm/mV), ×1 (10 mm/mV), ×2 (20 mm/mV)

• Heart rate range:

  • Big animals: 15–300 bpm

  • Small animals: 15–350 bpm

• Resolution: 1 bpm

• Accuracy: ±1% or ±1 bpm

---

NIBP

• Measurement method: Pulse wave oscillation

• Modes: Manual / Auto / Continuous

• Measurement range:

  • Big animals: SYS 40–280 mmHg, DIA 10–220 mmHg, MEAN 20–240 mmHg

  • Small animals: SYS 40–220 mmHg, DIA 10–160 mmHg, MEAN 20–170 mmHg

• Resolution: 1 mmHg

• Accuracy: ±5 mmHg

---

SpO₂

• Range: 0–100%

• Resolution: 1%

• Accuracy: ±2% (70–100%)

---

Respiration (RESP)

• Range:

  • Big animals: 0–120 BrPM

  • Small animals: 0–150 BrPM

• Resolution: 1 BrPM

• Accuracy: ±2 BrPM

---

Pulse Rate (PR)

• Range: 20–250 bpm

• Resolution: 1 bpm

• Accuracy: ±3 bpm

---

Temperature

• Range: 0–50°C

• Resolution: 0.1°C

• Accuracy: ±0.1°C (with dedicated probe)

---

EtCO₂ (Optional)

• Range: 0–19.7%

• Resolution: 0.1 mmHg

• Accuracy:

  • 0–40 mmHg: ±2 mmHg

  • 41–70 mmHg: ±5%

  • 71–100 mmHg: ±8%

  • 101–150 mmHg: ±10%

---

OEM / ODM & Commercial Information

RN PET 10S is supplied directly from the manufacturer and supports OEM / ODM cooperation. Customization options may include branding, language interface, and configuration based on order quantity and project requirements.

• Factory-direct supply

• MOQ applies

• Final pricing depends on quantity, configuration, and destination

• For distributor cooperation or technical inquiries, please contact the supplier
