RN8003V+ Veterinary Electrocardiograph is a compact and reliable 3-channel ECG machine developed specifically for veterinary clinical applications. It is suitable for ECG examination and arrhythmia analysis in small animals and large animals, including dogs, cats, horses, and livestock.

The system supports 7-lead ECG acquisition with synchronous recording, providing clear and accurate cardiac waveforms. Multiple working modes—including Auto, Manual, and Analysis—allow veterinarians to adapt the device to different diagnostic scenarios.

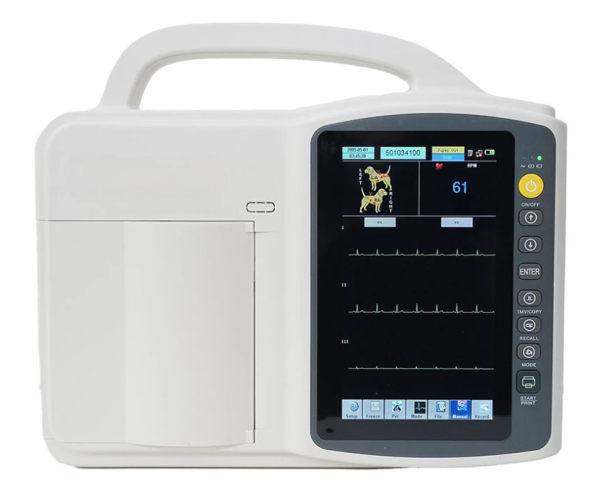

RN8003V+ features a built-in high-resolution color LCD display and integrated thermal printer, enabling immediate waveform visualization and ECG report printing without external equipment. Advanced digital filters and automatic baseline adjustment ensure stable signal quality and reduced interference.

With its lightweight, portable design and rechargeable battery, RN8003V+ is well suited for use in veterinary clinics, hospitals, mobile practices, and field applications. Optional PC ECG management software allows data transfer, storage, and further analysis when required.

KEY FEATURES

• 3-channel ECG recording with 7-lead synchronous acquisition

• Multiple working modes: Auto / Manual / Arrhythmia Analysis

• Built-in thermal printer (80 mm paper)

• High-accuracy digital filtering and automatic baseline correction

• Large color LCD display for clear waveform visualization

• Stores and displays up to 100 ECG cases

• Portable design with rechargeable battery

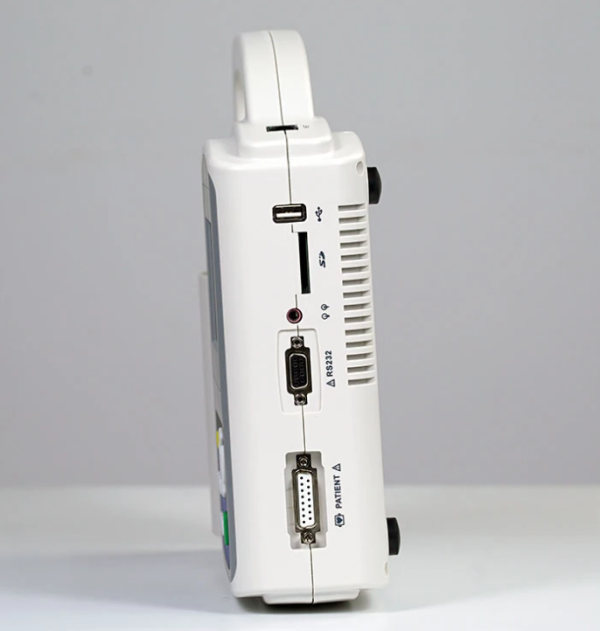

• USB and RS232 communication interfaces

• Optional PC ECG management software

TECHNICAL SPECIFICATIONS

ECG Acquisition

• Leads: Standard 7 leads

• Lead acquisition: 24-bit / 1000 Hz (synchronous 7 leads)

Filters

• AC Filter: 50 Hz / 60 Hz

• EMG Filter: 35 Hz / 45 Hz

• Anti-Drift Filter: 0.15 Hz (adaptive)

Performance

• Frequency response: 0.05 – 150 Hz (-3 dB)

• CMRR: ≥ 100 dB (with AC filter)

• Input impedance: ≥ 50 MΩ

• Patient leakage current: < 10 μA

• Noise level: < 15 μVp-p

Recording & Printing

• Recording modes: 1ch+V, 3ch, 3ch+V

• Paper speed: 5 / 10 / 12.5 / 25 / 50 mm/s (±3%)

• Paper size: 80 mm × 20 m roll

Display & Interface

• Display: 7-inch color LCD (480 × 272)

• Communication: USB / RS232

Power Supply

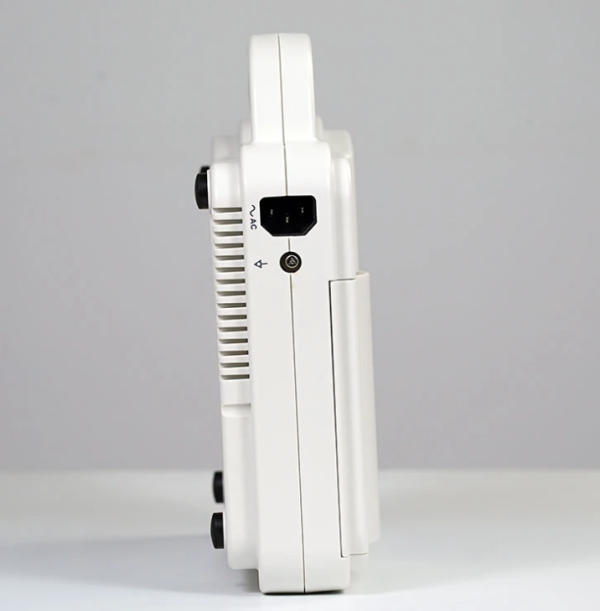

• AC: 110–230 V, 50/60 Hz

• Battery: Rechargeable Ni-MH battery

Dimensions & Weight

• Dimensions: 310 × 260 × 85 mm

• Weight: approx. 1.4 kg

STANDARD PACKAGE

• Main unit × 1

• Veterinary patient cable with electrodes × 1

• Thermal printing paper × 1 roll

• Paper axis × 1

• Power cord × 1

• Grounding cable × 1

• PC ECG software (optional)
